24 Ports Optical Distribution Box Water Resistant For Telecommunication Network

Item : Fibre Optic Distribution Box

Feature : Water-proof design

Application : for the fusion splice or mechanical splice

Type : 1x24

Material : high impact plastic

Advantage : Ultra violet resistant and rainfall resistant

Certification : ISO 9001

MOQ : 10 Pieces

Price : Negotiable

Packaging Details : Cartoon

Delivery Time : 7-10 Days

Payment Terms : 30% deposit , Balance due within 7 days from date of shipment bill of lading

Supply Ability : 50000 Monthly Output

Contact Now

Introduction

The distribution box can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Characteristics

1) Water-proof design with IP-66 Protection level.
2) Integrated with splice cassette and cable management rods.

3) Manage fibers in a reasonable fiber radius condition.

4) Easy to maintain and extend the capacity.

5) Fiber bend radius control more than 40mm

6) Suitable for the fusion splice or mechanical splice

7) 1*24 Splitter can be installed as an option.

8) Efficient cable management

9) 24 ports cable entrance for drop cable.

Application:

FTTH, FTTB, FTTC

Telecommunication Network

Local Area Network

Specification

ITEM	Fiber Optic Distribution Box
Dimensions(mm)	LxWxH 21017548mm
Cable input capacity	Max. ports (Max. dia : 16 mm)
Cable output capacity	Max. ports (Max. dia : 16mm)
Max.capacity	24 cores
Opration Temperature	-40°C—+85°C
Tensile Strengh	≥450Kg/c㎡
Impact Strengh	35Kg cm/cm (nomar temp.)
Impact Strengh	10Kg cm/cm(-30°C)
Flexural Strengh	≥450Kg/c㎡

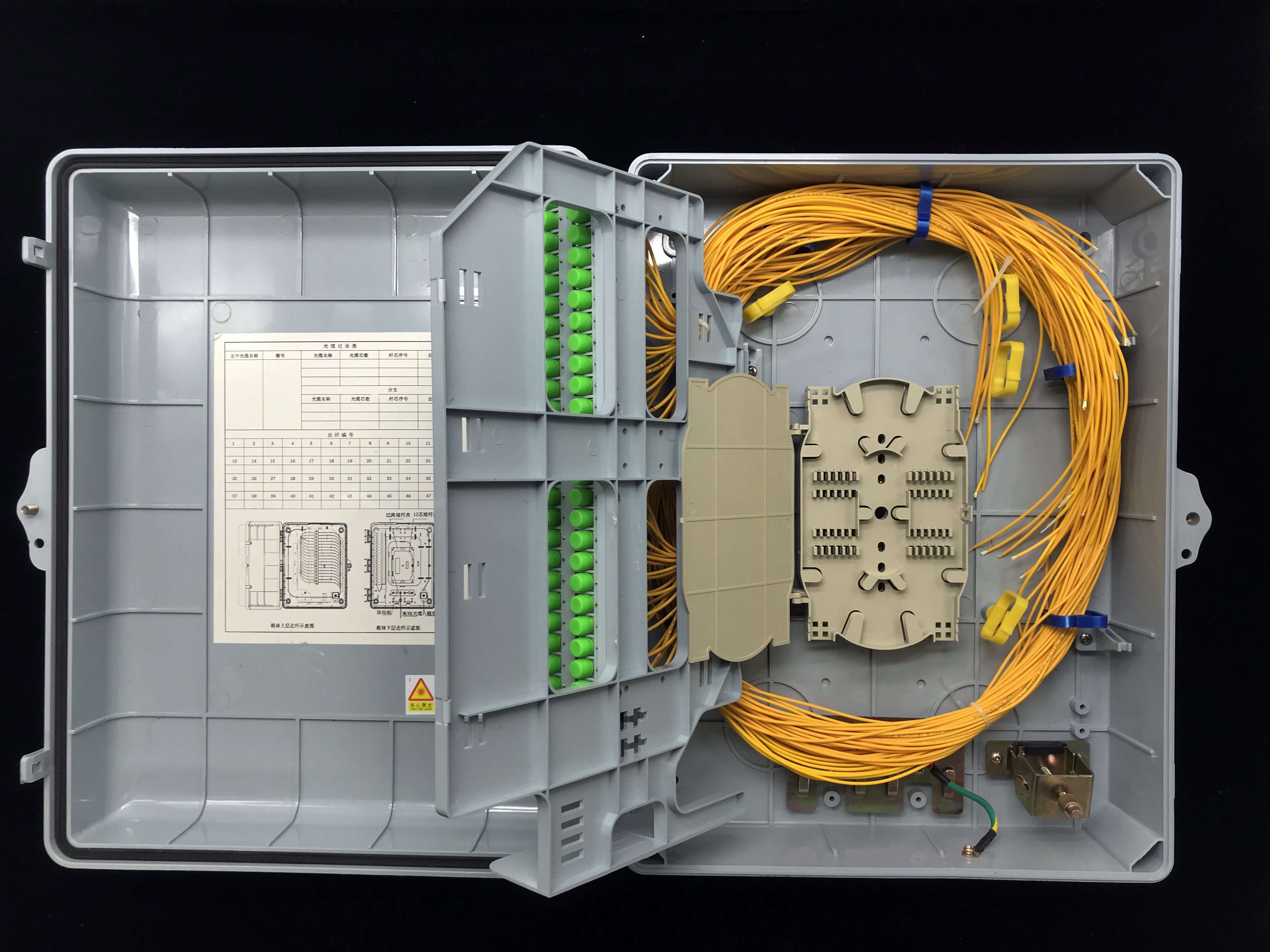

Product Show

24 Ports Optical Distribution Box Water Resistant For Telecommunication Network
